Anti-Integrin alpha 2 antibody [EPR5788] (ab133557) at 1/50000 dilution (purified) + A431 cell lysate at 20 µgSecondaryPeroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Anti-Integrin alpha 2 antibody [EPR5788] (ab133557) at 1/10000 dilution (purified) + Mouse spleen tissue lysate at 20 µgSecondaryPeroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

All lanes : Anti-Integrin alpha 2 antibody [EPR5788] (ab133557) at 1/10000 dilution (unpurified)Lane 1 : T47D lysateLane 2 : 293T lysateLane 3 : Human platelet lysateLane 4 : A431 lysateLysates/proteins at 10 µg per lane.SecondaryHRP labelled goat anti-rabbit at 1/2000 dilution

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human breast carcinoma tissue labelling Integrin alpha 2 with purified ab133557 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon tissue labelling Integrin alpha 2 with unpurified ab133557 at 1/250.

Flow Cytometry analysis of A549 cells labelling Integrin alpha 2 with purified ab133557 at 1/60 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

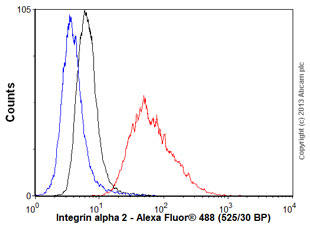

Overlay histogram showing A431 cells stained with unpurified ab133557 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab133557, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was a goat anti-rabbit Alexa Fluor® 488 (IgG; H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x106 cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

Equilibrium disassociation constant (KD)Learn more about KD Click here to learn more about KD
