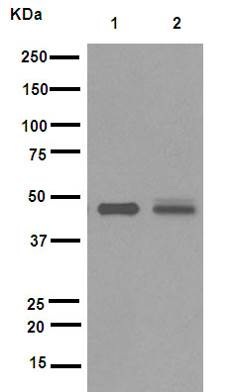

All lanes : Anti-TSG101 antibody [EPR7130(B)] (ab125011) at 1/10000 dilution (purified)Lane 1 : Jurkat cell lysateLane 2 : SH-SY5Y cell lysateLysates/proteins at 10 µg per lane.SecondaryPeroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

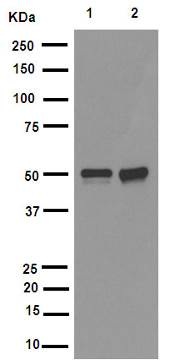

All lanes : Anti-TSG101 antibody [EPR7130(B)] (ab125011) at 1/500 dilution (unpurified)Lane 1 : Mouse heart tissue lysateLane 2 : Rat heart tissue lysateLysates/proteins at 10 µg per lane.SecondaryPeroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

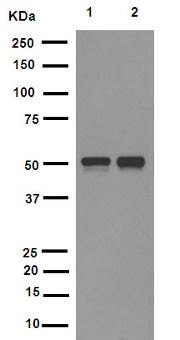

All lanes : Anti-TSG101 antibody [EPR7130(B)] (ab125011) at 7000 (purified)Lane 1 : Mouse heart tissue lysateLane 2 : Mouse heart tissue lysateLysates/proteins at 10 µg per lane.SecondaryPeroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

All lanes : Anti-TSG101 antibody [EPR7130(B)] (ab125011) at 1/1000 dilution (unpurified)Lane 1 : Human Brain lysateLane 2 : K562 lysateLane 3 : Jurkat lysateLane 4 : SH-SY5Y lysateLysates/proteins at 10 µg per lane.SecondaryHRP labelled goat anti-rabbit at 1/2000 dilution

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human kidney tissue labelling TSG101 with unpurified ab125011 at 1/30. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Counterstained with Hematoxylin.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human kidney tissue labelling TSG101 with purified ab125011 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Counterstained with Hematoxylin.

Immunocytochemsitry/Immunofluorescence analysis of HEK293 cells labelling TSG101 (red) with unpurified ab125011 at 1/10. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor® 555-conjugated goat anti-rabbit IgG (1/200) was used as the secondary antibody. Counterstained with DAPI (blue).

Immunocytochemsitry/Immunofluorescence analysis of HEK293 cells labelling TSG101 (red) with purified ab125011 at 1/100. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor® 555-conjugated goat anti-rabbit IgG (1/200) was used as the secondary antibody. Counterstained with DAPI (blue).

Flow cytometry analysis of permeabilized HeLa cells labeling TSG101 with unpurified ab125011 at 1/3 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Green - Isotype control, rabbit monoclonal IgG.

Flow cytometry analysis of permeabilized HeLa cells labeling TSG101 with purified ab125011 at 1/40 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Green - Isotype control, rabbit monoclonal IgG.

Flow cytometric analysis of permeabilized K562 cells labeling TSG101 (red) with unpurified ab125011 at 1/10. Green - Isotype control, rabbit monoclonal IgG.

Equilibrium disassociation constant (KD)Learn more about KD Click here to learn more about KD
